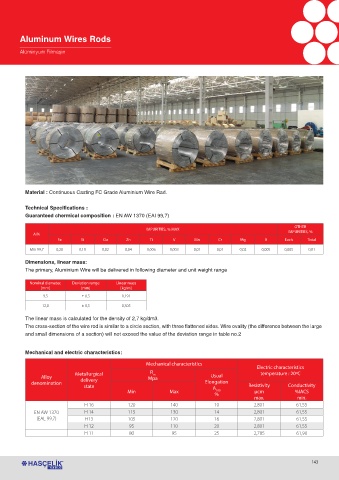

Aluminum Wires Rods

Alüminyum Filmaşin

Material : Continuous Casting FC Grade Aluminium Wire Rad.

Technical Specifications :
Guaranteed chermical composition : EN AW 1370 (EAI 99,7)
OTHER
IMPURITIES, % MAX
AI% IMPURITIES, %
Fe Si Cu Zn Ti V Mn Cr Mg B Each Total
Min 99,7 0,20 0,10 0,02 0,04 0,006 0,003 0,01 0,01 0,02 0,005 0,005 0,01

Dimensions, linear mass:
The primary, Aluminium Wire will be delivered in following diameter and unit weight range

Nominal diameter, Deviation range Linear mass
[mm] (mm) [kg/m]
9,5 ± 0,5 0,191
12,0 ± 0,5 0,305

The linear mass is calculated for the density of 2,7 kg/dm3.
The cross-section of the wire rod is similar to a circle section, with three flattened sides. Wire ovality (the difference between the large
and small dimensions of a section) will not exceed the value of the deviation range in table no.2

Mechanical and electric characteristics:
Mechanical characteristics
Electric characteristics
Metallurgical R m temperature : 20ºC
Alloy Mpa Usual
denomination delivery Elongation
state A Resistivity Conductivity
Min Max % μcm %IACS
100
max. min.
H 16 120 140 10 2,801 61,55
EN AW 1370 H 14 115 130 14 2,801 61,55
(EAL 99,7) H13 105 120 16 2,801 61,55
H 12 95 110 20 2,801 61,55
H 11 80 95 25 2,785 61,90
