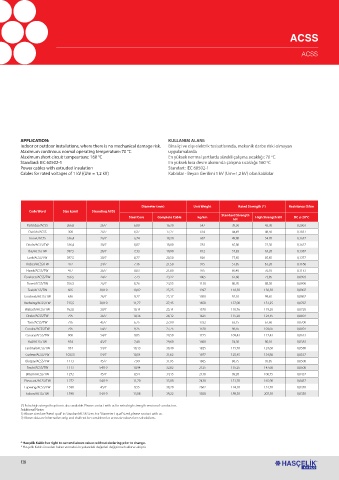

ACSS

ACSS

APPLICATION: KULLANIM ALANI:
Indoor or outdoor installations, where there is no mechanical damage risk. Bina içi ve dışı elektrik tesisatlarında, mekanik darbe riski olmayan
Maximum continious normal operating temperature: 70 °C uygulamalarda
Maximum short circuit tempearture: 160 °C En yüksek normal şartlarda sürekli çalışma sıcaklığı: 70 C
o
Standard: IEC 60502-1 En yüksek kısa devre akımında çalışma sıcaklığı: 160 C
o
Power cables with extruded insulation Standart: IEC 60502-1
Cables for rated voltages of 1 kV ((Um = 1,2 kV) Kablolar - Beyan Gerilimi 1 kV (Um=1,2 kV) olan kablolar

Diameter (mm) Unit Weight Rated Strength (*) Resistance Ω/km
Code Word Size kcmil Stranding Al/St
Standard Strength
Steel Core Complete Cable kg/km kN High Strength kN DC @ 20°C
Partridge/ACSS 266,8 26/7 6,00 16,30 547 39,50 43,30 0,2063
Ostrich/ACSS 300 26/7 6,37 17,27 614 44,49 48,50 0,1837
Linnet/ACSS 336,4 26/7 6,74 18,30 687 49,80 54.70 0,1637
Oriole/ACSS/TW 336,4 30/7 8,07 18,80 783 65,80 72,50 0,1627
Ibis/ACSS/TW 397,5 26/7 7,33 19,90 812 57,83 63,20 0,1387
Lark/ACSS/TW 397,5 30/7 8,77 20,50 926 77,85 85,85 0,1377
Flicker/ACSS/TW 477 24/7 7,16 21,50 915 57,85 63,20 0,1160
Hawk/ACSS/TW 477 26/7 8,03 21,80 975 69,40 76,10 0,1153
Parakeet/ACSS/TW 556,5 24/7 7,73 23,22 1065 67,60 73,85 0,0993
Dove/ACSS/TW 556.5 26/7 8,76 23,55 1138 80,95 88,50 0,0990
Teal/ACSS/TW 605 30/19 10,82 25,25 1397 118,30 130,30 0,0907
Grosbeak/ACSS/TW 636 26/7 9,27 25,17 1300 92,10 99,65 0,0867
Redwing/ACSS/TW 715,5 30/19 11,77 27,45 1650 137,00 151,25 0,0767
Wabash/ACSS/TW 762,8 20/7 10,14 25,14 1570 110,76 119,20 0,0720
Drake/ACSS/TW 795 26/7 10,36 28,12 1625 115,20 124,55 0,0697
Tern/ACSS/TW 795 45/7 6,75 27,00 1332 63,15 67,60 0,0700
Condor/ACSS/TW 795 54/7 9,25 27,75 1520 96,55 103,65 0,0697
Canary/ACSS/TW 900 54/7 9,85 29,50 1725 109,43 117,43 0,0613
Rail/ACSS/TW 954 45/7 7,40 29,60 1600 74,30 80,10 0,0583
Cardinal/ACSS/TW 954 54/7 10,13 30,40 1825 115,70 124,60 0,0580
Curlew/ACSS/TW 1033.5 54/7 10,54 31,62 1977 125,45 134,80 0,0537
Bluejay/ACSS/TW 1113 45/7 7,99 31,95 1865 86,75 93,85 0,0500
Finch/ACSS/TW 1113 54/19 10,94 32,82 2125 135,25 147,68 0,0500
Bittern/ACSS/TW 1272 45/7 8,54 34,15 2130 99,20 106,75 0,0437
Pheasant/ACSS/TW 1272 54/19 11,70 35,08 2430 151,70 165,90 0,0437
Lapwing/ACSS/TW 1590 45/7 9,55 38,20 2662 124,10 131,70 0,0350
Falcon/ACSS/TW 1590 54/19 13,08 39,22 3038 189,50 207,30 0,0350
(*) Extra high srtregnth option is also available. Please contact with us for extra high strength version of conductors.
Additional Notes:
1) Above sized are “Area Equal” to Standard ACSR Sizes. For “Diameter Equal” sized, please contact with us.
2) Above data are informative only, and shall not be considered as accurate values foer calculations.

* Hasçelik Kablo has right to camend above values without declaring prior to change.
* Hasçelik Kablo önceden haber vermeksizin yukarıdaki değerleri değiştirme hakkına sahiptir.
