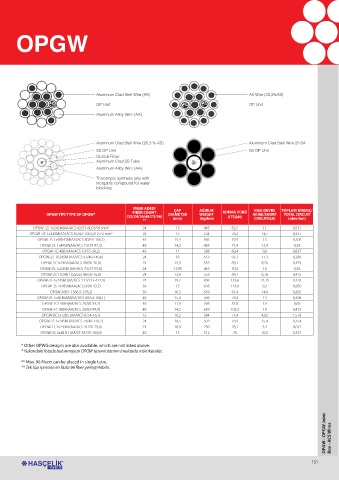

OPGW

Aluminum Clad Stell Wire (AS) AS Wire (20,3%AS)
OP Unit OP Unit

Aluminum Alloy Wire (AA)

Aluminum Clad Stell Wire (20,3 % AS) Aluminum Clad Stell Wire 20 SA
SS OP Unit SS OP Unit
Optical Fiber
Aluminum Clad SS Tube
Aluminum Alloy Wire (AA)

Thixotropic synthetic jelly with
inorganic compound for water
blocking

FİBER ADEDİ ÇAP AĞIRLIK KISA DEVRE TOPLAM DİRENÇ/
OPGW TİPİ/TYPE OF OPGW* FIBER COUNT DIAMETER WEIGHT KOPMA YÜKÜ AKIMI/SHORT TOTAL CIRCUIT
(12/24/36/48/72/96) (mm) (kg/km) UTS(kN) CIRCUIT(kA) (ohm/km)
**
OPGW -2S 1x24SM(AA/ACS 42/53-60,7)/95 mm² 24 13 485 82,7 11 0,531
OPGW -2S 1x24SM(AA/ACS 85/42-138,5)/127-2 mm² 24 15 534 78,2 14,7 0,327
OPGW-2S 1x48B4SM(AA/ACS 80/54-168,1) 48 15,4 566 79,4 13 0,308
OPGW-2C 1x48SM(AA/ACS 73/39-97,3) 48 14,2 485 71,4 13,9 0,38
OPGW-1C-48B1(AA/ACS 10/55-28,2) 48 11 388 60,4 9,8 0,837
OPGW-2S 1X24SM (AA/ACS 97/48-149,6) 24 16 613 91,3 17,3 0,288
OPGW-2C1x24B1(AA/ACS 48/58-76,8) 24 13,9 553 89,1 8,76 0,475
OPGW-2S 1x24SM (AA/ACS 73/37-91,8) 24 13,95 463 70,2 10 0,36
OPGW-2C1 X24b1 (aa/acs 48/58-76,8) 24 13,9 553 89,1 8,76 0,475
OPGW-3S 1x24SM (AA/ACS 111/111-472,5) 24 19,7 898 118,6 21,75 0,178
OPGW-3S 2x48SM(AA/ACS 0/90-43,7) 36 13 645 114,9 9,3 0,956
OPGW-36B1-156(91-218,2) 36 16,3 659 91,4 14,8 0,265
OPGW-2S 1x48 B4SM(AA/ACS 80/54-168,1) 48 15,4 566 79,4 13 0,308
OPGW-1C148B4(AA/ACS 25/50-54,2) 48 11,9 398 57,8 7,4 0,65
OPGW-1C 48B4 (AA/ACS 38/83-99,9) 48 14,2 659 102,3 10 0,415
OPGW-0C1x12B5 (AA/ACS 0/54-16,1) 12 10,2 384 71,4 4,02 1,578
OPGW-2S 1x24SM (AA/ACS 79/40-118,7) 24 14,5 503 76,9 15,4 0,354
OPGW-1C1x24SM (AA/ACS 41/20-29,6) 24 10,8 250 28,1 5,4 0,631
OPGW-2S 2x48 B1 (AA/ST 85/35-104,9) 48 15 512 70 10,2 0,337

* Other OPWG designs are also available, which are not listed above.
* Yukarıdaki listede bulunmayan OPGW tasarımlarının imalatıda mümkündür.

** Max. 96 fibers can be placed in single tube.
** Tek tüp içerisine en fazla 96 fiber yerleştirlebilir.
