ACS

ASTM B-416

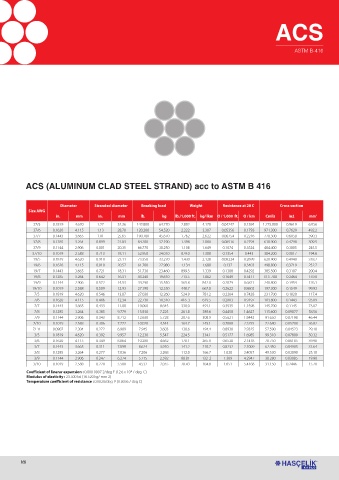

ACS (ALUMINUM CLAD STEEL STRAND) acc to ASTM B 416

Diameter Stranded diameter Breaking load Weight Resistance at 20 C Cross section
Size AWG
in. mm in. mm lb. kg lb./1,000 ft. kg/ lkm O / 1,000 ft. O / km Cmils in2 mm'
37/5 0.1819 4.620 1.27 32.36 142.800 64.770 2.802 4.170 0.04247 0.1394 1.225.000 0.9619 620.6
37/6 0.1620 4.115 1.13 28.70 120.200 54.520 2.222 3.307 0.05356 0.1758 971.300 0.7629 492.2
37/7 0.1443 3.665 1.01 25.65 100.700 45.670 1.762 2.622 0.06754 0.2216 770.300 0.6050 390.3
37/8 0.1285 3.264 0.899 22.83 84.200 37.190 1.398 2.080 0.08516 0.2794 610.900 0.4798 309.5
37/9 0.1144 2.906 0.801 20.35 66.770 30.250 1.108 1.649 0.1074 0.3524 484.400 0.3805 245.5
37/10 0.1019 2.588 0.713 18.11 52.950 24.010 879.0 1.308 0.1354 0.443 384.200 0.3017 194.6
19/5 0.1819 4.620 0.910 23.11 73.350 33.270 1.430 2.128 0.08224 0.2699 628.900 0.4940 318.7
19/6 0.1620 4.115 0.810 20.57 61.700 27.980 1.134 1.688 0.137 0.3403 498.800 0.3719 252.7
19/7 0.1443 3.665 0.721 18.31 51.730 23.460 899.5 1.339 0.1308 0.4292 385.500 0.3107 200.4
19/8 0.1285 3.264 0.642 16.31 43.240 19.610 713.5 1.062 0.1649 0.5411 313 .700 0.2464 159.0
19/9 0.1144 2.906 0.572 14.53 34.290 15.550 565.8 842.0 0.2079 0.6821 248.800 0.1954 126.1
19/10 0.1019 2.588 0.509 12.93 27.190 12.330 448.7 667.8 0.2622 0.8603 197.300 0.1549 99.93
7/5 0.1819 4.620 0.546 13.87 27.030 12.260 524.9 781.2 0.2264 0.7428 231.700 0.1820 117.4
7/6 0.1620 4.115 0.486 12.34 22.730 10.310 416 .3 619.5 0.2803 0.9197 183.800 0.1443 93.09
7/7 0.1443 3.665 0.433 11.00 19.060 8.645 330.0 491.1 0.3535 1.1598 145.700 0.1145 73.87
7/8 0.1285 3.264 0.385 9.779 15.930 7.225 261.8 389.6 0.4458 1.4627 115.600 0.09077 58.56
7/9 0.1144 2.906 0.343 8.712 12.630 5.728 207.6 308.9 0.5621 1.8442 91.650 0.07198 46.44
7/10 0.1019 2.588 0.306 7.772 10.020 4.544 164.7 245.1 0.7088 2.3255 72.680 0.05708 36.82
7/ 11 0.0907 2.304 0.272 6.909 7.945 3.603 130.6 194.4 0.8938 2.9325 57.590 0.04523 29.18
3/5 0.1819 4.620 0.392 9.957 12.230 5.547 224.5 334.1 0.5177 1.6985 99.310 0.07800 50.32
3/6 0.1620 4.115 0.349 8.864 10.280 4.662 178.1 265.0 0.6528 2.1418 78.750 0.06185 39.90
3/7 0.1443 3.665 0.311 7.899 8.624 3.910 141.2 210.7 0.8232 2.1009 62.450 0.04905 31.64
3/8 0.1285 3.264 0.277 7.036 7.206 3.268 112.0 166.7 1.038 3.4057 49.530 0.03890 25.10
3/9 0.1144 2.906 0.247 6.274 5.715 2.592 88.81 132 .2 1.309 4.2947 38.280 0.03085 19.90
3/10 0.1019 2.588 0.220 5.588 4.532 2.055 70.43 104.8 1.651 5.4168 31.150 0.2446 15.78
Coefficient of linerar expansion : 0.000 0007 2/deg F (12.6 x 10* / deg C)
Modulus of elasticity : 23.500 ksi (16.520 kg/ mm 2)
Temperature coefficient of resistance : 0.0020/deg F (0.0036 / deg C)
