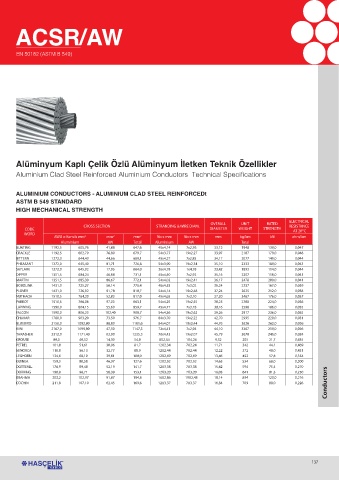

ACSR/AW

EN 50182 (ASTM B 549)

Alüminyum Kaplı Çelik Özlü Alüminyum İletken Teknik Özellikler

Aluminium Clad Steel Reinforced Aluminium Conductors Technical Specifications

ALUMINIUM CONDUCTORS - ALUMINIUM CLAD STEEL REINFORCEDt
ASTM B 549 STANDARD
HIGH MECHANICAL STRENGTH
ELECTRICAL
OVERALL UNIT RATED
CROSS SECTION STRANDING & WIRE DIAM. RESISTANCE
CODE DIAMETER WEIGHT STRENGTH AT 20 C
O
WORD
AWG o Kemils mm 2 mm 2 mm 2 No x mm No x mm mm kg/km kN ohm/km
Aluminium AW Total Aluminium AW Total
BUNTING 1192,5 605,76 41,88 647,6 45x4,14 7x2,76 33,12 1948 139,0 0,047
CRACKLE 1192,5 602,79 76,89 679,7 54x3,77 19x2,27 33,97 2187 179,0 0,046
BITTERN 1272,0 644,40 44,66 689,1 45x4,27 7x2,85 34,17 2077 149,0 0,044
PHEASANT 1272,0 645,40 81,71 726,8 54x3,90 19x2,34 35,10 2333 189,0 0,043
SKYLARK 1272,0 645,02 17,95 664,0 36x4,78 1x4,78 33,42 1893 114,0 0,044
DIPPER 1351,5 684,24 46,88 731,1 45x4,40 7x2,92 35,16 2207 158,0 0,041
MARTIN 1351,5 685,39 86,67 772,1 54x4,02 19x2,41 36,17 2478 200,0 0,041
BOBOLINK 1431,0 725,27 50,14 775,4 45x4,53 7x3,02 36,24 2337 167,0 0,039
PLOVER 1431,0 726,92 91,78 818,7 54x4,14 19x2,48 37,24 2625 212,0 0,038
NUTHACH 1510,5 764,20 52,83 817,0 45x4,65 7x3,10 37,20 2467 176,0 0,037
PARROT 1510,5 766,06 97,03 863,1 54x4,25 19x2,55 38,25 2788 224,0 0,036
LAPWING 1590,0 804,15 55,60 859,7 45x4,77 7x3,18 38,16 2598 186,0 0,035
FALCON 1590,0 806,23 102,40 908,7 54x4,36 19x2,62 39,26 2917 236,0 0,035
CHUKAR 1780,0 903,20 73,50 976,7 84x3,70 19x2,22 42,70 2995 220,0 0,031
BLUEBIRD 2156,0 1092,80 88,80 1181,6 84x4,07 19x2,44 44,76 3626 262,0 0,026
KIWI 2167,0 1099,80 47,50 1147,3 72x4,41 7x2,94 44,10 3367 219,0 0,026
THRASHER 2312,0 1171,40 63,90 1235,3 76x4,43 19x2,07 45,79 3678 246,0 0,024
GROUSE 80,0 40,52 14,30 54,8 8X2,54 1X4,24 9,32 205 21,7 0,635
PETREL 101,8 51,61 30,06 81,7 12X2,34 7X2,24 11,71 342 44,1 0,469
MINORCA 110,8 56,13 32,77 88,9 12X2,44 7X2,44 12,22 372 48,0 0,431
LEGHORN 134,6 68,19 39,81 108,0 12X2,69 7X2,69 13,46 452 57,8 0,354
GUINEA 159,0 80,58 46,97 127,6 12X2,92 7X2,92 14,63 534 68,0 0,300
DOTTEREL 176,9 89,48 52,19 141,7 12X3,08 7X3,08 15,42 594 75,4 0,270
DORKING 190,8 96,71 56,39 153,1 12X3,20 7X3,20 16,03 641 81,3 0,250
BRAHMA 203,2 102,97 91,87 194,8 16X2,86 19X2,48 18,14 894 120,0 0,216
COCHIN 211,8 107,10 62,45 169,6 12X3,37 7X3,37 16,84 709 88,0 0,226 Conductors
