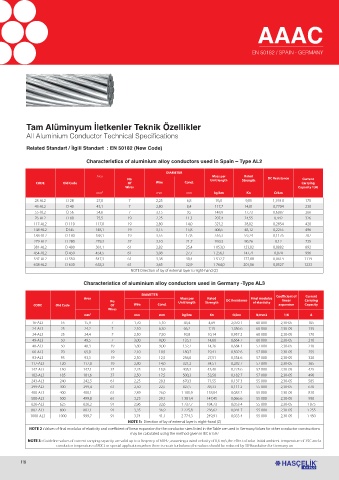

AAAC

EN 50182 / SPAIN - GERMANY

Tam Alüminyum İletkenler Teknik Özellikler
All Aluminium Conductor Technical Specifications

Related Standart / İlgili Standart : EN 50182 (New Code)

Characteristics of aluminium alloy conductors used in Spain – Type AL2
DIAMETER
Area Mass per Rated
No Unit length Strength DC Resistance Current
CODE Old Code Of Wire Cond. Carrying
Wires Capacity 1(A)
mm² mm mm kg/km Kn Ω/km
28-AL2 D 28 27,8 7 2,25 6,8 76,0 9,05 1,193 0 175
43-AL2 D 40 43,1 7 2,80 8,4 117,7 14,01 0,7704 230
55-AL2 D 56 54,6 7 3,15 9,5 148,9 17,73 0,6087 266
76-AL2 D 80 75,5 19 2,25 11,3 207,4 24,55 0,442 326
117-AL2 D 110 117,0 19 2,80 14,0 321,2 38,02 0,2854 428
148-AL2 D145 148,1 19 3,15 15,8 406,5 48,12 0,2255 496
188-AL2 D 180 188,1 19 3,55 17,8 516,3 59,24 0,1176 707
279-AL2 D 280 279,3 37 3,10 21,7 769,3 90,76 0,12 735
381-AL2 D 400 381,1 61 2,82 25,4 1 053,0 123,82 0,0882 892
454-AL2 D 450 454,5 61 3,08 27,7 1 256,1 147,71 0,074 996
547-AL2 D 550 547,3 61 3,38 30,4 1 512,7 177,88 0,0614 1119
638-AL2 D 630 638,3 61 3,65 32,9 1 764,0 201,06 0,0527 1233
NOTE Direction of lay of external layer is rright-hand (Z)

Characteristics of aluminium alloy conductors used in Germany -Type AL3
DIAMETER Coefficient of Current
Area Mass per Rated Final modulus
No Unit length Strength DC Resistance of elasticity linear Carrying
CODE Old Code Of Wire Cond. axpansion Capacity
Wires
mm² mm mm kg/km Kn Ω/km N/mm2 1/K A
16-AL3 16 15,9 7 1,70 5,10 43,4 4,69 2,070 1 60 000 2,30-05 105
24-AL3 25 24,2 7 2,10 6,30 66,2 7,15 1,356 6 60 000 2,30-05 135
34-AL3 35 34,4 7 2,50 7,50 93,8 10,14 0,957 2 60 000 2,30-05 170
49-AL3 50 49,5 7 3,00 9,00 135,1 14,60 0,664 7 60 000 2,30-05 210
48-AL3 50 48,3 19 1,80 9,00 132,7 14,26 0,684 1 57 000 2,30-05 210
66-AL3 70 65,8 19 2,10 10,5 180,7 19,41 0,502 6 57 000 2,30-05 255
93-AL3 95 93,3 19 2,50 12,5 256,0 27,51 0,354 6 57 000 2,30-05 320
117-AL3 120 117,0 19 2,80 14,0 321,2 34,51 0,282 7 57 000 2,30-05 365
147-AL3 150 147,1 37 2,25 15,8 405,3 43,40 0,225 6 57 000 2,30-05 425
182-AL3 185 181,6 37 2,50 17,5 500,3 53,58 0,182 7 57 000 2,30-05 490
243-AL3 240 242,5 61 2,25 20,3 670,3 71,55 0,137 3 55 000 2,30-05 585
299-AL3 300 299,4 61 2,50 22,5 827,5 88,33 0,111 2 55 000 2,30-05 670
400-AL3 400 400,1 61 2,89 26,0 1 105,9 118,04 0,083 2 55 000 2,30-05 810
500-AL3 500 499,8 61 3,23 29,1 1 381,4 147,45 0,066 6 55 000 2,30-05 930
626-AL3 625 626,2 91 2,96 32,6 1 737,7 184,73 0,053 4 55 000 2,30-05 1 075
802-AL3 800 802,1 91 3,35 36,9 2 225,8 236,62 0,041 7 55 000 2,30-05 1 255
1000-AL3 1000 999,7 91 3,74 41,1 2 774,3 249,91 0,033 4 55 000 2,30-05 1 450
NOTE 1: Direction of lay of external layer is rright-hand (Z)
NOTE 2 : Values of final modulus of elasticity and coefficient of linear expansion for the conductor sizes listed in the Table are used in Germany.Values for other conductor constructions
may be calculated using the method given in IEC 61597
NOTE 3 : Guideline values of current carrying capacity are valid up to a freqency of 60 Hz, assuming a wind velocity of 0,6 m/s,the effect of solar initial ambient temperature of 35C and a
conductor tenperature of 80C.For special applications,when there is no air turbulance,the values should be reduced by 30 %.radiation for Germany an
