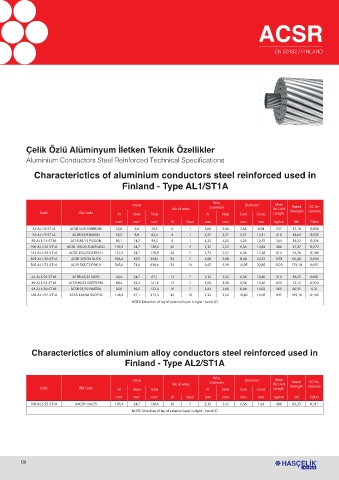

ACSR

EN 50182 / FINLAND

Çelik Özlü Alüminyum İletken Teknik Özellikler
Aluminium Conductors Steel Reinforced Technical Specifications

Characterictics of aluminium conductors steel reinforced used in
Finland - Type AL1/ST1A

Wire
Areas Diameter Diameter Mass Rated DC Re-
No of wires Per Unit
Code Old Code AI Steel Total AI Steel Core Cond. Length Strength sistanve
mm 2 mm 2 mm 2 AI Steel mm mm mm mm kg/km kN Ω/km
34-AL1/6-ST1A ACSR 34/6 SPARROW 33,8 5,6 39,5 6 1 2,68 2,68 2,68 8,04 137 12,18 0,846
54-AL1/9-ST1A ACSR 54/9 RAVEN 53,5 8,9 62,4 6 1 3,37 3,37 3,37 10,11 216 18,64 0,535
85-AL1/14-ST1A ACSR 85/14 PIGEON 85,1 14,2 99,3 6 1 4,25 4,25 4,25 12,75 344 29,22 0,336
106-AL1/25-ST1A ACSR 106/25 SUURSAVO 105,9 24,7 130,6 30 7 2,12 2,12 6,36 14,84 486 47,97 0,272
152-AL1/25-ST1A ACSR 152/25OSTRICH 152,2 24,7 176,9 26 7 2,73 2,12 6,36 17,28 614 54,78 0,189
305-AL1/39-ST1A ACSR 305/39 DUCK 304,6 39,5 344,1 54 7 2,68 2,68 8,04 24,12 1151 96,,80 0,094
565-AL1/72-ST1A ACSR 565/72 FINCH 565,0 71,6 636,6 54 19 3,65 2,19 10,95 32,85 2123 174,14 0,051
42-AL1/25-ST1A ACSR 42/25 SAVO 42,4 24,7 67,1 12 7 2,12 2,12 6,36 10,60 310 36,53 0,681
89-AL1/52-ST1A ACSR 89/52 DOTTEREL 89,4 52,2 141,6 12 7 3,08 3,08 9,24 15,40 655 72,12 0,323
93-AL1/39-ST1A ACSR 93/39 IMATRA 92,9 39,5 132,4 10 7 3,44 2,68 8,04 14,92 565 60,35 0,31
148-AL1/67-ST1A ACSR 148/68 KUOPIO 148,3 67,1 215,3 42 19 2,12 2,12 10,60 19,08 937 105,16 0,195
NOTE: Direction of lay of external layer is right - hand (Z)

Characterictics of aluminium alloy conductors steel reinforced used in
Finland - Type AL2/ST1A

Wire
Areas Diameter Mass Rated DC Re-
No of wires Diameter Per Unit
Code Old Code AI Steel Total AI Steel Core Cond. Length Strength sistanve
mm 2 mm 2 mm 2 AI Steel mm mm mm mm kg/km kN Ω/km
106-AL2/25-ST1A AACSR 106/25 105,9 24,7 130,6 30 7 2,12 2,12 6,36 14,8 486 63,33 0,317
NOTE: Direction of lay of external layer is right - hand (Z)

128
