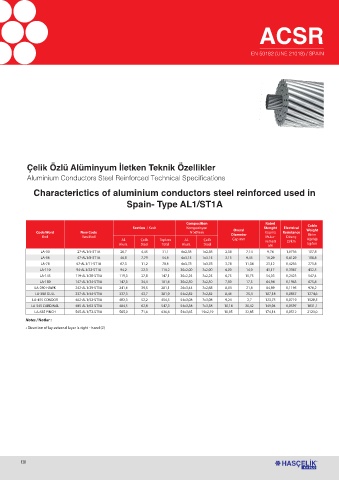

ACSR

EN 50182 (UNE 21018) / SPAIN

Çelik Özlü Alüminyum İletken Teknik Özellikler
Aluminium Conductors Steel Reinforced Technical Specifications

Characterictics of aluminium conductors steel reinforced used in
Spain- Type AL1/ST1A

Composition Rated
Section / Kesit Kompozisyon Stenght Electrical Cable
Overal
Code Word New Code N xØmm Diameter Kopma Resistance Weight
2
Birim
Kod Yeni Kod Muka- Direnç
Al. Çelik Toplam Al. Çelik Çap mm vemeti Ω/km Ağırlığı
Alum. Steel Total Alum. Steel kN kg/km
LA-30 27-AL1/4-ST1A 26,7 4,45 31,1 6x2,38 1x2,38 2,38 7,14 9,74 1,0736 107,8
LA-56 47-AL1/8-ST1A 46,8 7,79 54,6 6x3,15 1x3,15 3,15 9,45 16,29 0,6129 188,8
LA-78 67-AL1/11-ST1A 67,3 11,2 78,6 6x3,78 1x3,78 3,78 11,34 23,12 0,4256 271,8
LA-110 94-AL1/22-ST1A 94,2 22,0 116,2 30x2,00 7x2,00 6,00 14,0 43,17 0,3067 432,5
LA-145 119-AL1/28-ST1A 119,3 27,8 147,1 30x2,25 7x2,25 6,75 15,75 54,03 0,2423 547,4
LA-180 147-AL1/34-ST1A 147,3 34,4 181,6 30x2,50 7x2,50 7,50 17,5 64,94 0,1963 675,8
LA-280 HAWK 242-AL1/39-ST1A 241,6 39,5 281,1 26x3,44 7x2,68 8,04 21,8 84,89 0,1195 976,2
LA-380 GULL 337-AL1/44-ST1A 337,3 43,7 381,0 54x2,82 7x2,82 8,46 25,4 107,18 0,0857 1274,6
LA-455 CONDOR 402-AL1/52-ST1A 402,3 52,2 454,5 54x3,08 7x3,08 9,24 2,7 123,75 0,0719 1520,5
LA-545 CARDINAL 485-AL1/63-ST1A 484,5 62,8 547,3 54x3,38 7x3,38 10,14 30,42 149,04 0,0597 1831,1
LA-635 FINCH 565-AL1/72-ST1A 565,0 71,6 636,6 54x3,65 19x2,19 10,95 32,85 174,14 0,0512 2123,0
Notes / Notlar :
• Direction of lay external layer is right - hand (Z)
